How To customize a field's display

User data is displayed in various situations: forms, form gridviews, navigation, Office files, etc.

Consequently we find three types of display:

Display text (Office files, SMS, or any non-html media)
Display HTML (gridviews, navigation)
Control (forms, inline edition)

This article focuses on the first two, controls customization is detailed here.

This topic contains the following sections:

Data example
Display text
Display Html
Mixing fields

Data example

We consider the following example, listing static apnea records with their respective duration.

Our objective is to change that duration display without affecting the stored values.

Display text

First, you need to open the HtmlHelper corresponding to your content-type ([Generated_Project]\Forms\Html Helpers\Record_Helper.cs).

Then override the GetDisplayText method like this:

Copy

protected override string GetDisplayText(PFField field, PFFieldControlMode mode, object fieldValue)
{
    if (field.Name == Record.FieldName_Duration && mode != PFFieldControlMode.Hidden)
        return fieldValue.GetString().Replace(":", "min ") + "s";
    else
        return base.GetDisplayText(field, mode, fieldValue);
}

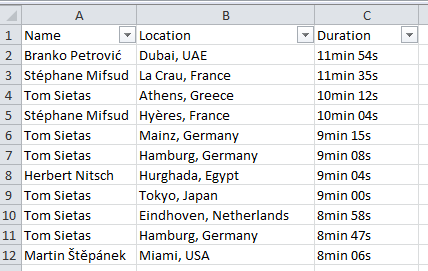

Once deployed, we can export the view to Excel and see the following:

Display Html

Again, you need to open the HtmlHelper corresponding to your content-type ([Generated_Project]\Forms\Html Helpers\Record_Helper.cs).

Then override the GetDisplayHtml method like this:

Copy

protected override string GetDisplayHtml(PFField field, PFFieldControlMode mode, object fieldValue, string sourceUrl = null)
{
    if (field.Name == Record.FieldName_Duration && mode != PFFieldControlMode.Hidden)
        return "<b>" + fieldValue.GetString().Replace(":", "min</b> ") + "s";
    else
        return base.GetDisplayHtml(field, mode, fieldValue, sourceUrl);
}

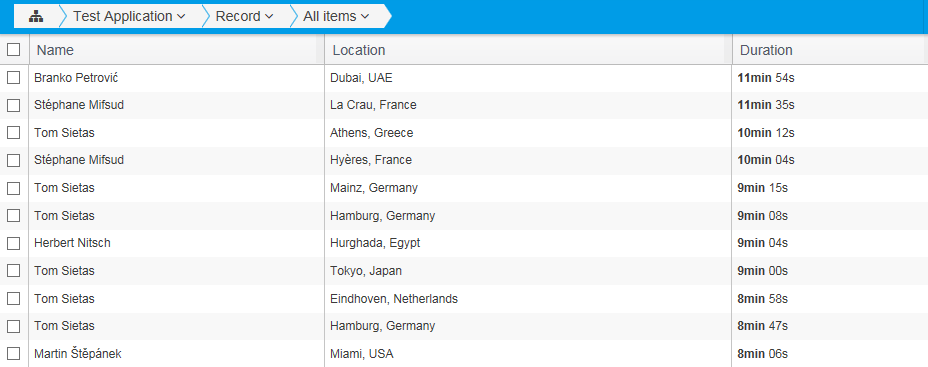

When loading the view again, we get this result:

Mixing fields

You can also override the HTML to include the value of another field.

Consider a new (choice) field "Nationality" (targeting the Country content-type) has been added to the content-type Record, and we want to be see its value without changing the view.

We can call the GetDisplayHtml for that field:

Copy

protected override string GetDisplayHtml(PFField field, PFFieldControlMode mode, object fieldValue, string sourceUrl = null)
{
    if (mode != PFFieldControlMode.Hidden)
    {
        if (field.Name == Record.FieldName_Duration)
            return "<b>" + fieldValue.GetString().Replace(":", "min</b> ") + "s";
        else if (field.Name == Record.FieldName_Name)
        {
            //Get nationality field and value
            PFField nationalityField = CurrentObject.ParentContentType.PFField_Nationality;
            PFFieldChoiceValue nationality = CurrentObject.__Nationality;

            //Return HTML
            return String.Format("{0}<br />{1}",
                base.GetDisplayHtml(field, mode, fieldValue, sourceUrl),
                base.GetDisplayHtml(nationalityField, mode, nationality, sourceUrl));
        }
    }

    return base.GetDisplayHtml(field, mode, fieldValue, sourceUrl);
}

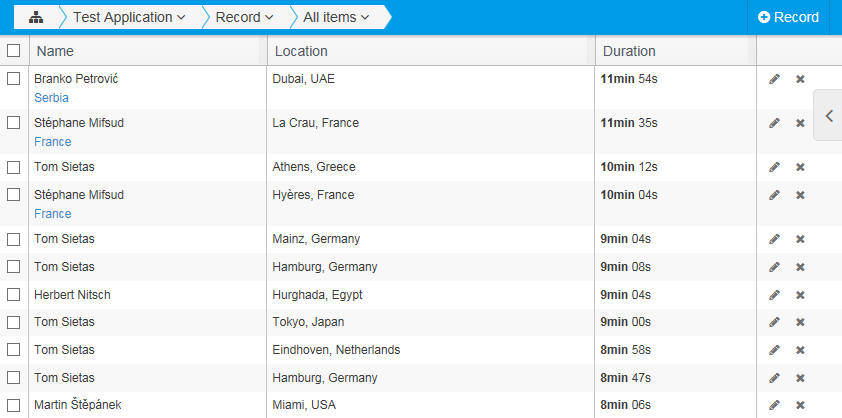

Here is the result:

Note
Packflow is only loading the values displayed in the view, plus a few system fields. To display a value from a field not included in the view, you must force its load checking the "Force load on views" in the modeling. Else, its value will not be available in the data collection of the current item.

Note

Packflow is only loading the values displayed in the view, plus a few system fields.

To display a value from a field not included in the view, you must force its load checking the "Force load on views" in the modeling.

Else, its value will not be available in the data collection of the current item.
